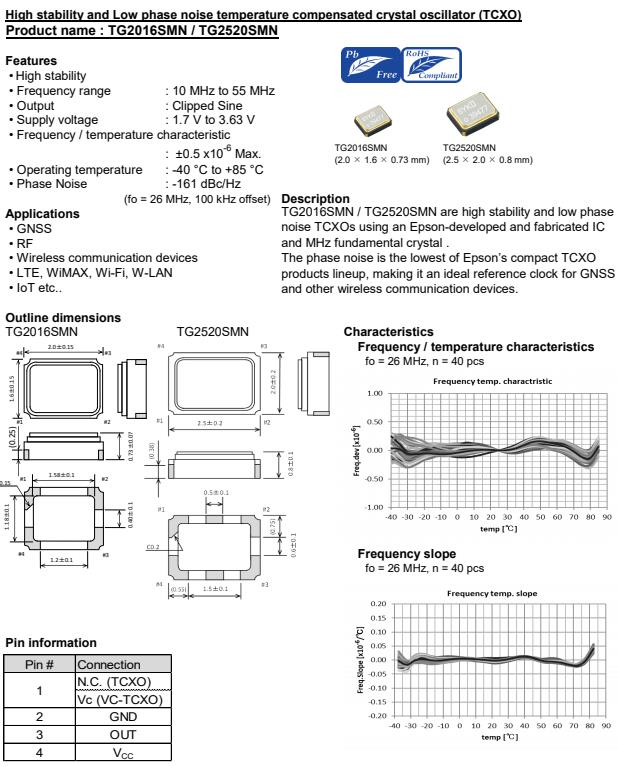

醫療產品專用溫補晶振的最佳選擇X1G005421030827，新的市場機會伴隨新挑戰而來，只有當你準備隨時迎接挑戰，才能抓住每一次機會的到來，作為在晶體行業有著豐富經驗的愛普生公司，總是擁有超級好的運氣，能夠抓住每次機會，同時又是一家擁有獨特創新能力的企業，快速結合市場需求推出了愛普生晶振TG2520SMN晶振，溫補晶振編碼X1G005421030827，頻率16.000000兆赫，輸出剪波正弦波，電源電壓2.66至3.46 V，電源電壓(類型)N/A V，尺寸(LxWxH)2.5 x 2.0 x 0.8 mm，操作溫度-40至+85°C，頻率公差+/- 1.5 ppm，相位噪聲是愛普生的緊湊型TCXO中最低的產品系列，使其成為GNSS授時模塊的理想?yún)⒖紩r鐘以及其他無線通信設備，醫療產品專用晶振。

Product Number	貼片溫補晶振	Frequency	LxWxH	Supply Voltage	F.Tol@25°C	Ope Temperature	Freq/Temp
X1G005421022027	TG2520SMN	52.000000 MHz	2.50 x 2.00 x 0.80 mm	1.700 to 1.900 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005421022127	TG2520SMN	27.600000 MHz	2.50 x 2.00 x 0.80 mm	1.700 to 1.900 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005421022227	TG2520SMN	50.000000 MHz	2.50 x 2.00 x 0.80 mm	1.700 to 1.900 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005421030127	TG2520SMN	16.368000 MHz	2.50 x 2.00 x 0.80 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005421030227	TG2520SMN	16.369000 MHz	2.50 x 2.00 x 0.80 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005421030327	TG2520SMN	19.200000 MHz	2.50 x 2.00 x 0.80 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005421030427	TG2520SMN	26.000000 MHz	2.50 x 2.00 x 0.80 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005421030527	TG2520SMN	32.000000 MHz	2.50 x 2.00 x 0.80 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005421030627	TG2520SMN	38.400000 MHz	2.50 x 2.00 x 0.80 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005421030727	TG2520SMN	40.000000 MHz	2.50 x 2.00 x 0.80 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005421030827	TG2520SMN	16.000000 MHz	2.50 x 2.00 x 0.80 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005421031127	TG2520SMN	20.000000 MHz	2.50 x 2.00 x 0.80 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005421031227	TG2520SMN	24.000000 MHz	2.50 x 2.00 x 0.80 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005421031327	TG2520SMN	25.000000 MHz	2.50 x 2.00 x 0.80 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005421031427	TG2520SMN	27.000000 MHz	2.50 x 2.00 x 0.80 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005421031527	TG2520SMN	30.000000 MHz	2.50 x 2.00 x 0.80 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005421031627	TG2520SMN	48.000000 MHz	2.50 x 2.00 x 0.80 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005421032027	TG2520SMN	52.000000 MHz	2.50 x 2.00 x 0.80 mm	2.660 to 3.465 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm

TCXO和OCXO振蕩器以及其它利用基波或諧波方式的石英晶體振蕩器具有最好的相位噪聲性能。采用鎖相環合成器產生輸出頻率的振蕩器比采用非鎖相環技術的振蕩器一般呈現較差的相位噪聲性能。抖動與相位噪聲相關，但是它在時域下測量。以微微秒表示的抖動可用有效值或峰—峰值測出。許多應用，例如通信網絡、無線數據傳輸、ATM和SONET要求必須滿足嚴格的拌動指標。需要密切注意在這些系統中應用的振蕩器的抖動和相位噪聲特性。
