首頁進口晶振愛普生晶振Q22FA23V00044數據手冊 FA-238V 20pF 3225mm 12MHZ
pdfs

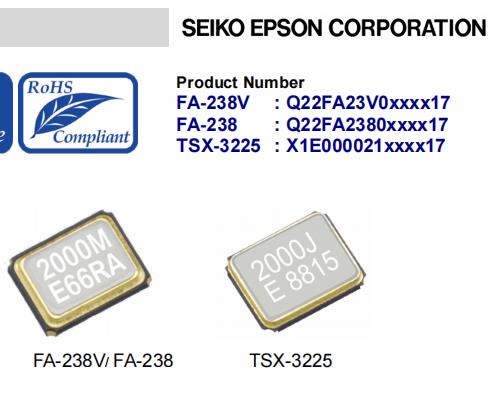

    Q22FA23V00044數據手冊 FA-238V 20pF 3225mm 12MHZ

  • 編號：70610656
  • 頻率：12MHZ
  • 尺寸：3.2*2.5mm
  • RoHS
  • RoHS2
Q22FA23V00044數據手冊FA-238V20pF3225mm12MHZ,尺寸為3225mm,頻率為12MHZ，愛普生晶振，EPSON晶振，日本進口晶振，無源晶振，貼片石英晶振，水晶振動子，音叉晶體，石英晶體諧振器，SMD晶振，3225mm晶振，無源晶振，智...

Q22FA23V00044數據手冊 FA-238V 20pF 3225mm 12MHZ,尺寸為3225mm,頻率為12MHZ，愛普生晶振，EPSON晶振，日本進口晶振，無源晶振，貼片石英晶振，水晶振動子，音叉晶體，石英晶體諧振器，SMD晶振，3225mm晶振，無源晶振，智能手機晶振，藍牙晶振，無線網絡晶振，儀器設備晶振，無線局域網晶振，主控板時鐘專用晶振，通信設備晶振，Q22FA23V00033晶振，Q22FA23V00068晶振。
無源SMD晶振比較適合用于手機、藍牙、無線局域網， ISM波段無線電，主控板時鐘，以及儀器設備，通信產品等領域。Q22FA23V00044數據手冊 FA-238V 20pF 3225mm 12MHZ.
Q22FA23V00044數據手冊 FA-238V 20pF 3225mm 12MHZ    參數表
項目 符號 For Clock For RF Reference 條件
FA-238V FA-238 TSX-3225
標稱頻率范圍 f_nom 12 MHz to
15.999 MHz		 16 MHz to
50 MHz		 16 MHz to
48 MHz		 基本* 1
請與我們聯系可用的頻率。
儲存溫度 T_stg -40 °C to +125 °C 作為單一產品存儲。
工作溫度 T_use -40 °C to +85 °C (+105 °C) 請與我們聯系+85°C < T_use
驅動級別 DL 200 µW Max. 建議:10µW
頻率公差 f_tol ±50 × 10-6  (standard),
(±15 × 10-6     to ±50 × 10-6  is available)		 ± 10 × 10-6 +25°C請與我們聯系
在本規范中列出。* 1
頻率和溫度特性 f_tem ±30 × 10-6/-20 °C to +70 °C ± 10 × 10-6/-20 °C to +75 °C 請聯系我們的要求未列出
這個規范。* 1
負載電容 CL 7 pF to ∞ 請說明。
運動阻力(ESR) R1 As per table below As per table below -40 °C to +85 °C, DL = 100 µW
頻率老化 f_age ±5 × 10-6  / year Max. ± 1 × 10-6 / year Max.*2 +25°C，第一年year
Q22FA23V00044晶振  特點
頻率范圍:12 MHz至50 MHz (FA-238 / FA-238V)
•外部尺寸:3.2 × 2.5 × 0.6 mm···TSX-3225
···FA-238V / FA-238
•泛音順序:基本
•應用范圍:手機、藍牙、無線局域網
: ISM波段無線電，主控板時鐘

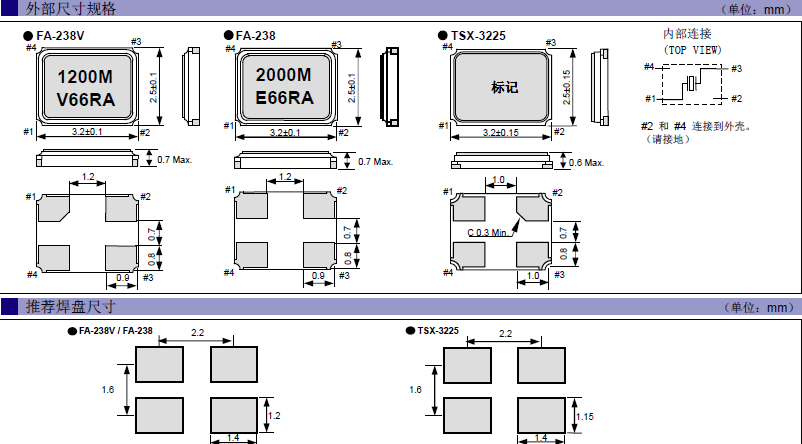

Q22FA23V00044數據手冊 FA-238V 20pF 3225mm 12MHZ 尺寸圖

更多相關日本愛普生晶振型號
編碼 尺寸 型號 頻率 /負載 頻率 @+25°C 工作溫度
Q22FA23V00012 3.2 x 2.5 x 0.7mm FA-238V 13.560000 MHz 12 pF +/-50 ppm -40 to +80 °C
Q22FA23V00018 3.2 x 2.5 x 0.7mm FA-238V 12.288000 MHz 12 pF +/-50 ppm -20 to +70 °C
Q22FA23V00022 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 10 pF +/-30 ppm -20 to +70 °C
Q22FA23V00026 3.2 x 2.5 x 0.7mm FA-238V 13.000000 MHz 10 pF +/-50 ppm -20 to +70 °C
Q22FA23V00027 3.2 x 2.5 x 0.7mm FA-238V 14.745600 MHz 20 pF +/-50 ppm -20 to +70 °C
Q22FA23V00028 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 15 pF +/-50 ppm -20 to +70 °C
Q22FA23V00029 3.2 x 2.5 x 0.7mm FA-238V 13.000000 MHz 20 pF +/-50 ppm -20 to +70 °C
Q22FA23V00030 3.2 x 2.5 x 0.7mm FA-238V 13.000000 MHz 20 pF +/-30 ppm -20 to +60 °C
Q22FA23V00033 3.2 x 2.5 x 0.7mm FA-238V 12.288000 MHz 12 pF +/-30 ppm -20 to +70 °C
Q22FA23V00037 3.2 x 2.5 x 0.7mm FA-238V 14.318180 MHz 20 pF +/-50 ppm -20 to +70 °C
Q22FA23V00044 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 20 pF +/-50 ppm -20 to +70 °C
Q22FA23V00048 3.2 x 2.5 x 0.7mm FA-238V 13.000000 MHz 7 pF +/-50 ppm -20 to +70 °C
Q22FA23V00052 3.2 x 2.5 x 0.7mm FA-238V 13.560000 MHz 10 pF +/-50 ppm -20 to +70 °C
Q22FA23V00068 3.2 x 2.5 x 0.7mm FA-238V 14.318000 MHz 12 pF +/-50 ppm -20 to +70 °C
Q22FA23V00069 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 10 pF +/-15 ppm -20 to +70 °C
Q22FA23V00082 3.2 x 2.5 x 0.7mm FA-238V 14.318180 MHz 16 pF +/-50 ppm -20 to +70 °C
Q22FA23V00085 3.2 x 2.5 x 0.7mm FA-238V 12.288000 MHz 8 pF +/-50 ppm -20 to +70 °C
Q22FA23V00086 3.2 x 2.5 x 0.7mm FA-238V 14.745600 MHz 12 pF +/-50 ppm -20 to +70 °C
Q22FA23V00095 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 16 pF +/-50 ppm -20 to +70 °C
Q22FA23V00103 3.2 x 2.5 x 0.7mm FA-238V 14.318180 MHz 12.5 pF +/-30 ppm -20 to +70 °C
Q22FA23V00106 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 11 pF +/-30 ppm -20 to +70 °C
Q22FA23V00107 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 10 pF +/-50 ppm -40 to +85 °C
Q22FA23V00114 3.2 x 2.5 x 0.7mm FA-238V 14.318180 MHz 18 pF +/-50 ppm -20 to +70 °C
Q22FA23V00119 3.2 x 2.5 x 0.7mm FA-238V 12.500000 MHz 16 pF +/-50 ppm -20 to +70 °C
Q22FA23V00123 3.2 x 2.5 x 0.7mm FA-238V 13.560000 MHz 12 pF +/-20 ppm -40 to +85 °C
Q22FA23V00131 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 18 pF +/-50 ppm -20 to +70 °C
Q22FA23V00136 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 8 pF +/-50 ppm -20 to +70 °C
Q22FA23V00144 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 10 pF +/-15 ppm -20 to +70 °C
Q22FA23V00149 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 20 pF +/-30 ppm -20 to +70 °C
Q22FA23V00150 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 10 pF +/-10 ppm -20 to +70 °C
Q22FA23V00160 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 16 pF +/-30 ppm -20 to +70 °C
Q22FA23V00162 3.2 x 2.5 x 0.7mm FA-238V 12.288000 MHz 10 pF +/-50 ppm -20 to +70 °C
Q22FA23V00164 3.2 x 2.5 x 0.7mm FA-238V 14.318180 MHz 9 pF +/-50 ppm -20 to +70 °C
Q22FA23V00170 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 12 pF +/-30 ppm -20 to +70 °C
Q22FA23V00178 3.2 x 2.5 x 0.7mm FA-238V 13.560000 MHz 18 pF +/-50 ppm -20 to +70 °C
Q22FA23V00179 3.2 x 2.5 x 0.7mm FA-238V 12.500000 MHz 10 pF +/-50 ppm -20 to +70 °C
Q22FA23V00180 3.2 x 2.5 x 0.7mm FA-238V 14.745600 MHz 16 pF +/-50 ppm -20 to +70 °C
Q22FA23V00192 3.2 x 2.5 x 0.7mm FA-238V 12.288000 MHz 10 pF +/-30 ppm -20 to +70 °C
Q22FA23V00193 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 12.5 pF +/-50 ppm -20 to +70 °C
Q22FA23V00195 3.2 x 2.5 x 0.7mm FA-238V石英貼片晶振 13.000000 MHz 9 pF +/-20 ppm -40 to +85 °C
Q22FA23V00197 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 8 pF +/-15 ppm -20 to +70 °C
Q22FA23V00205 3.2 x 2.5 x 0.7mm FA-238V 14.745600 MHz 8 pF +/-50 ppm -20 to +70 °C
Q22FA23V00210 3.2 x 2.5 x 0.7mm FA-238V 14.745600 MHz 18 pF +/-50 ppm -20 to +70 °C
Q22FA23V00233 3.2 x 2.5 x 0.7mm FA-238V 14.318180 MHz 10 pF +/-20 ppm -20 to +70 °C
Q22FA23V00235 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 9 pF +/-30 ppm -20 to +70 °C
Q22FA23V00239 3.2 x 2.5 x 0.7mm FA-238V 14.318000 MHz 10 pF +/-50 ppm -20 to +70 °C
Q22FA23V00241 3.2 x 2.5 x 0.7mm FA-238V 14.318180 MHz 10 pF +/-50 ppm -40 to +85 °C
Q22FA23V00245 3.2 x 2.5 x 0.7mm FA-238V 14.318000 MHz 16 pF +/-50 ppm -20 to +70 °C
Q22FA23V00247 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 10 pF +/-20 ppm -20 to +70 °C
Q22FA23V00255 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 12 pF +/-20 ppm -20 to +70 °C
Q22FA23V00266 3.2 x 2.5 x 0.7mm FA-238V 13.560000 MHz 16 pF +/-50 ppm -20 to +70 °C
Q22FA23V00268 3.2 x 2.5 x 0.7mm FA-238V 12.288000 MHz 16 pF +/-50 ppm -20 to +70 °C
Q22FA23V00279 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 18 pF +/-30 ppm -20 to +70 °C
Q22FA23V00291 3.2 x 2.5 x 0.7mm FA-238V 14.318180 MHz 12 pF +/-15 ppm -40 to +85 °C
Q22FA23V00307 3.2 x 2.5 x 0.7mm FA-238V 14.318180 MHz 8 pF +/-30 ppm -20 to +70 °C
Q22FA23V00310 3.2 x 2.5 x 0.7mm FA-238V 14.318000 MHz 20 pF +/-30 ppm -20 to +70 °C
Q22FA23V00314 3.2 x 2.5 x 0.7mm FA-238V 14.318180 MHz 10 pF +/-50 ppm -40 to +85 °C
Q22FA23V00326 3.2 x 2.5 x 0.7mm FA-238V 14.318180 MHz 12 pF +/-10 ppm -40 to +85 °C
Q22FA23V00327 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 12 pF +/-20 ppm -40 to +85 °C
Q22FA23V00332 3.2 x 2.5 x 0.7mm FA-238V 14.745600 MHz 18 pF +/-30 ppm -20 to +70 °C
Q22FA23V00358 3.2 x 2.5 x 0.7mm FA-238V 12.000000 MHz 7 pF +/-30 ppm -20 to +70 °C
Q22FA23V00367 3.2 x 2.5 x 0.7mm FA-238V 14.318000 MHz 9 pF +/-50 ppm -20 to +75 °C
Q22FA23V00372 3.2 x 2.5 x 0.7mm FA-238V 12.288000 MHz 18 pF +/-20 ppm -40 to +85 °C
Q22FA23V00373 3.2 x 2.5 x 0.7mm FA-238V 14.745600 MHz 16 pF +/-50 ppm -40 to +85 °C
Q22FA23V00374 3.2 x 2.5 x 0.7mm FA-238V 13.560000 MHz 9 pF +/-50 ppm -20 to +70 °C
Q22FA23V00375 3.2 x 2.5 x 0.7mm FA-238V 12.800000 MHz 15 pF +/-10 ppm -20 to +70 °C
Q22FA23V00379 3.2 x 2.5 x 0.7mm FA-238V 13.300000 MHz 10 pF +/-50 ppm -20 to +70 °C
